The sticker on your NVMe drive says "Warranty Void if Removed." We remove it anyway. That sticker is a thermal insulator, and in high-performance computing, heat is the enemy of speed.
When building the Ronin database nodes, we faced a choice: Buy "Enterprise" U.2 SSDs for $600/TB, or buy "Consumer" Gen4 NVMe drives for $100/TB and hack them to survive server-grade workloads. We chose the hack.
The Thermal Throttle
Consumer drives (like the Samsung 990 Pro or WD Black) are incredibly fast—often faster than enterprise drives in burst speeds. But they are designed for gaming PCs, not 24/7 database writes.
When the NAND controller hits 70°C, it throttles. Your 7,000 MB/s write speed drops to 500 MB/s. In a database transaction, this looks like a system hang.
THE MODIFICATION
We don't trust the thin heat spreaders that come with the drives. We strip the drive down to the bare PCB and build a custom cooling stack.
The Ronin Cooling Stack

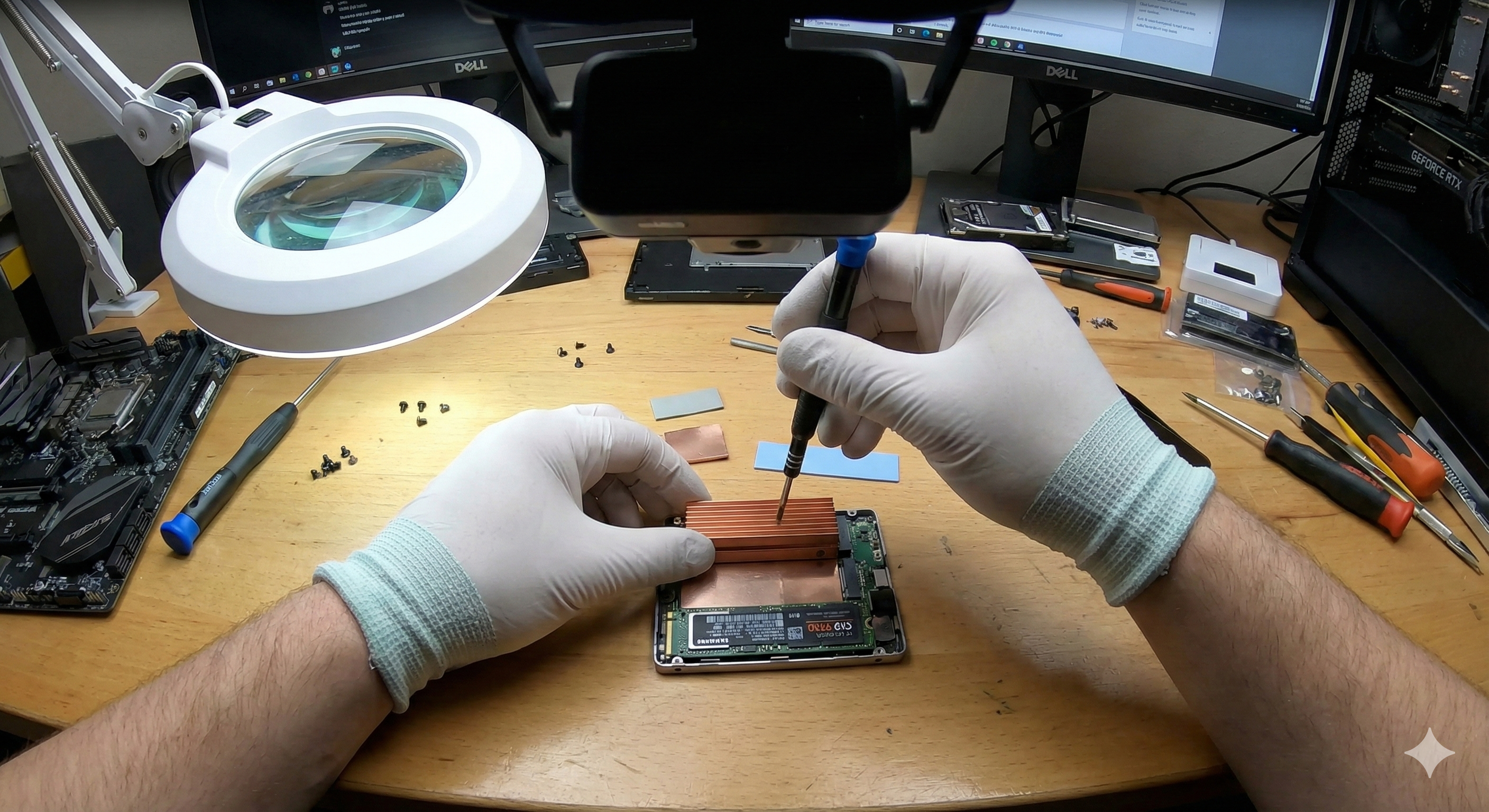

We realized that passive cooling wasn't enough in a dense 1U rack. We needed mass. We sourced pure copper shims and high-performance thermal pads (12 W/mK) usually reserved for GPU repair.
By removing the manufacturer's sticker (which traps heat) and applying direct copper contact, we dropped load temperatures from 82°C to 45°C.
Software Hacking: Over-Provisioning
Hardware is half the battle. Enterprise drives last longer because they have "spare area"—hidden storage capacity used to replace dead cells. Consumer drives don't give you this by default.
But you can force it.
We use `nvme-cli` to tell the drive controller to reserve 20% of its capacity for background operations. We turn a 2TB drive into a 1.6TB drive.
sudo nvme format /dev/nvme0n1 --lbaf=1 --ses=1
# Create a Host Protected Area (HPA)
sudo hdparm -N p3125627568 /dev/nvme0n1
This simple command gives the garbage collector massive breathing room. Write amplification goes down. Drive endurance goes up by 3x.
The Result
We built an "Enterprise" storage array for 1/5th of the cost.
Did we void 50 warranties? Yes.
Do we care? No.
At this price point, the hardware is disposable. The data is what matters.
